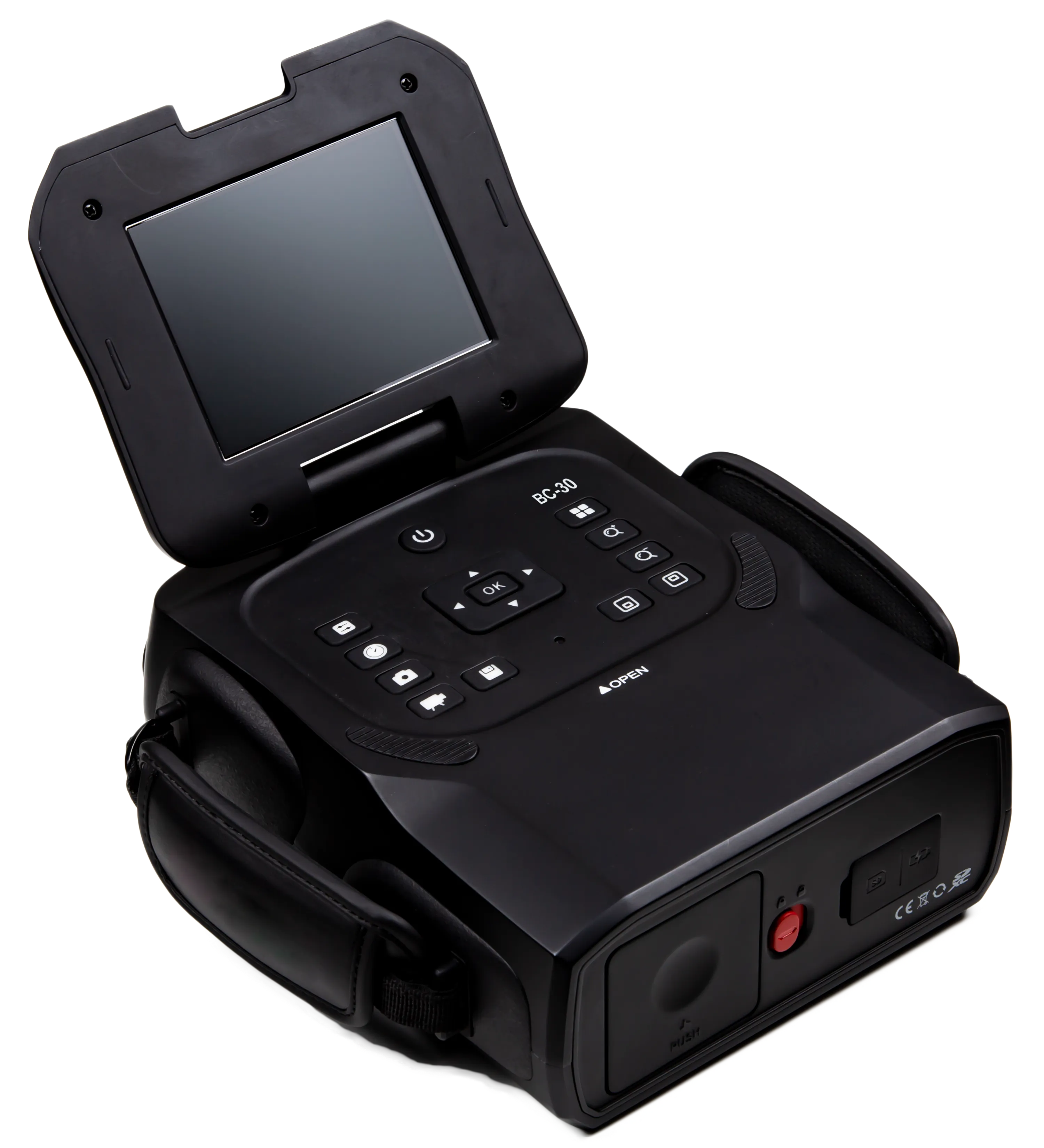

The BC-30 combines UV corona detection, IR thermal imaging and visible camera in one handheld device. Tri-spectrum fusion enables simultaneous corona detection and thermal anomaly identification in a single inspection pass.
UV Optical
Spectral Range
240 ~ 280nm (solar-blind)
Min. Discharge Sensitivity
1 Pc/10m
Min. UV Sensitivity
2 × 10⁻¹⁸ W/cm²
IR Optical
IR Temperature Range
-20 ~ +650°C
Thermal Sensitivity
≤0.05°C at 25°C
Visible
Display
Type
5-inch Transflective Colour LCD
Modes
UV · VIS · IR · Any combination of 2 or 3
Storage
Power
Battery
Li-ion rechargeable
Working Hours
≥4.5 hrs per battery (2 supplied)
Physical
Operating Temperature
-20°C ~ +55°C
Certifications
