UV DRONE SYSTEM
BC-30 DR
UV + IR + VIS Multi-Spectral Drone Camera
Tri-Spectrum UAV · 640×480 IR · 28× Optical Zoom · IP45
Spectrum
UV + IR + VIS
IR Pixel
640 × 480
VIS Zoom
28× Optical
UV Spectral
240–280nm
IP Class
IP45
Certs
CE
CE IP45

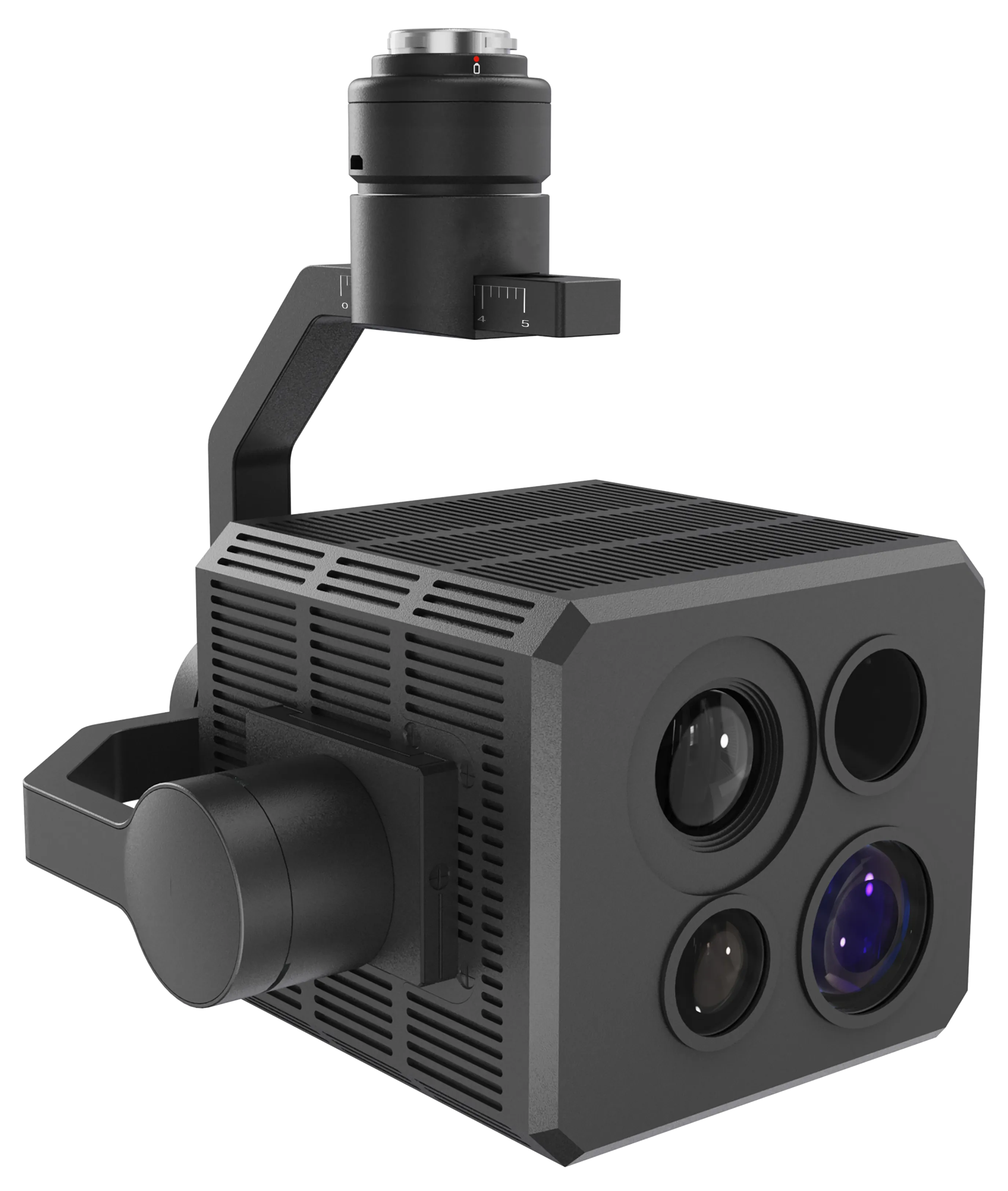

BC-30 DR UV + IR + VIS Multi-Spectral Drone Camera
01
Overview
KEY HIGHLIGHTS

The BC-30 DR is the most advanced aerial inspection platform combining UV corona, high-resolution 640×480 IR thermal and 28× optical zoom visible camera on a single UAV. One flight covers all multi-spectrum condition data needs.

02
Technical Data
SPECIFICATIONS
UV Optical
Spectral Range
240 ~ 280nm (solar-blind)
Min. Discharge Sensitivity
1 Pc/10m
IR Optical
IR Resolution
640 × 480 pixels
IR Temperature Range
-20 ~ +650°C
Thermal Sensitivity
≤0.05°C at 25°C
Spectral Range
8 ~ 14 μm
Visible
Resolution
1920 × 1080
Optical Zoom
28×
Digital Zoom
16×
UAV Platform
Navigation
GPS + GLONASS + Beidou
Gimbal
3-axis stabilisation
IP Rating
IP45
Operating Temperature
-20°C ~ +55°C
Storage
Video
MP4
Still
JPG / PNG
Certifications
Certifications
CE · IP45
03
Documentation
DOWNLOADS
Product Datasheet
BC-30 DR Specification
PDF · English
