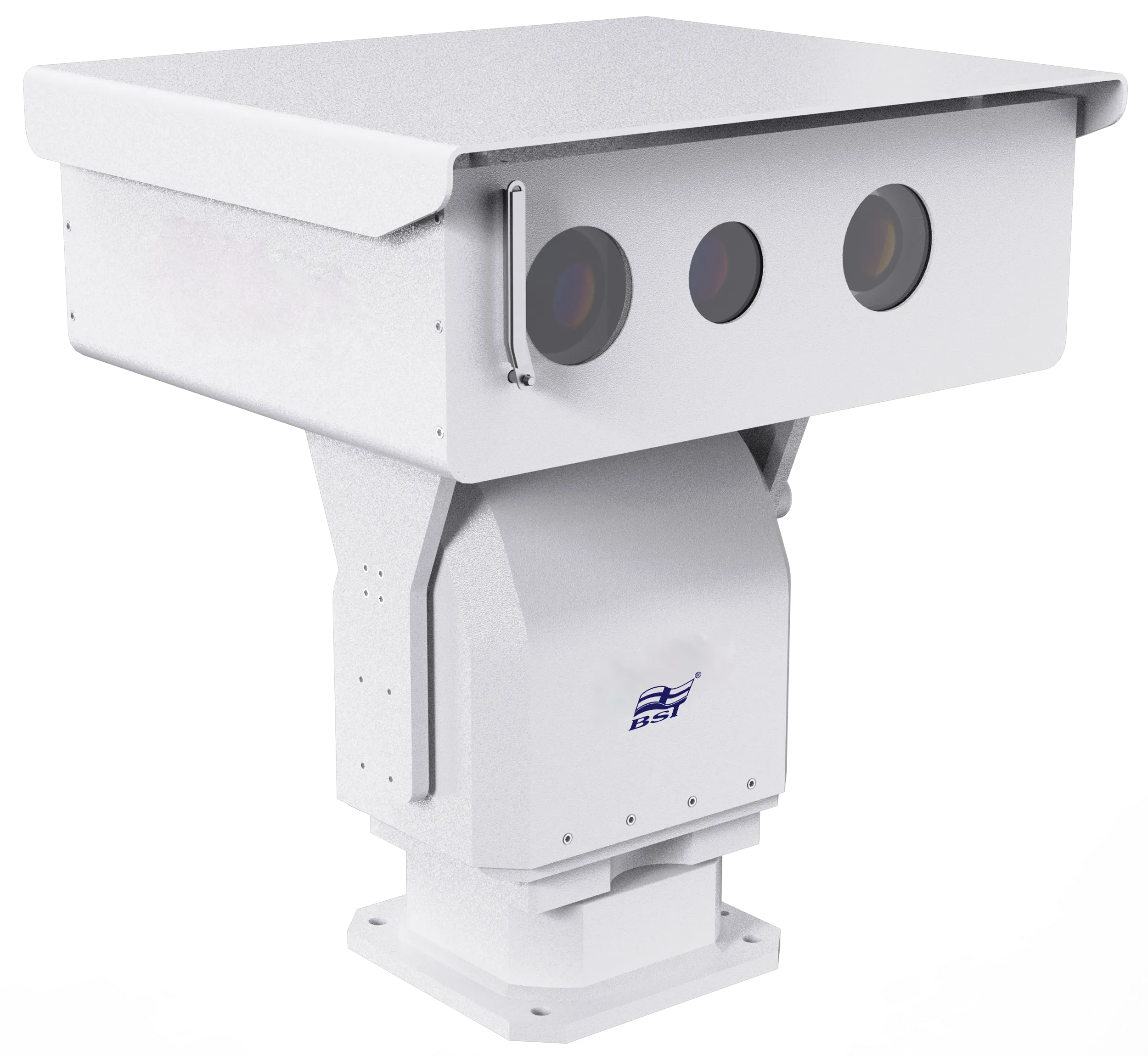

The BC-30 OS is a permanently-installed multi-spectrum online corona monitoring system integrating UV (240–280nm), infrared thermal imaging (640×480), 30× optical zoom visible camera and laser distance measurement. Mounted on a high-speed motorised 3D pan-tilt with IP66 protection, it delivers 24/7 autonomous patrol inspection, real-time corona detection and IR temperature monitoring for substations, booster stations and converter stations — with RTSP/ONVIF protocol support for integration into SCADA and network monitoring systems.

• Tri-spectrum: UV corona (240–280nm) + IR thermal (640×480) + 30× optical VIS
• Laser distance measurement for precise target localisation
• UV sensitivity 2×10⁻¹⁸ W/cm², discharge sensitivity 1 Pc/10m
• IR thermal: −20~+650°C, ±2°C accuracy, 50mK sensitivity, autofocus
• 30× optical + 20× digital zoom visible camera, 1920×1080
• IP66 weatherproof for outdoor substation installation
• 24/7 autonomous patrol with 256 preset positions
• Continuous pan 0~360° / tilt −75~+40°, speed 0.01~60°/s
• RTSP and ONVIF protocol support for SCADA integration
• Automatic alarm for UV photon count and temperature anomalies
• SDK development kit for custom integration
• Network distributed architecture — base station + terminal layer
